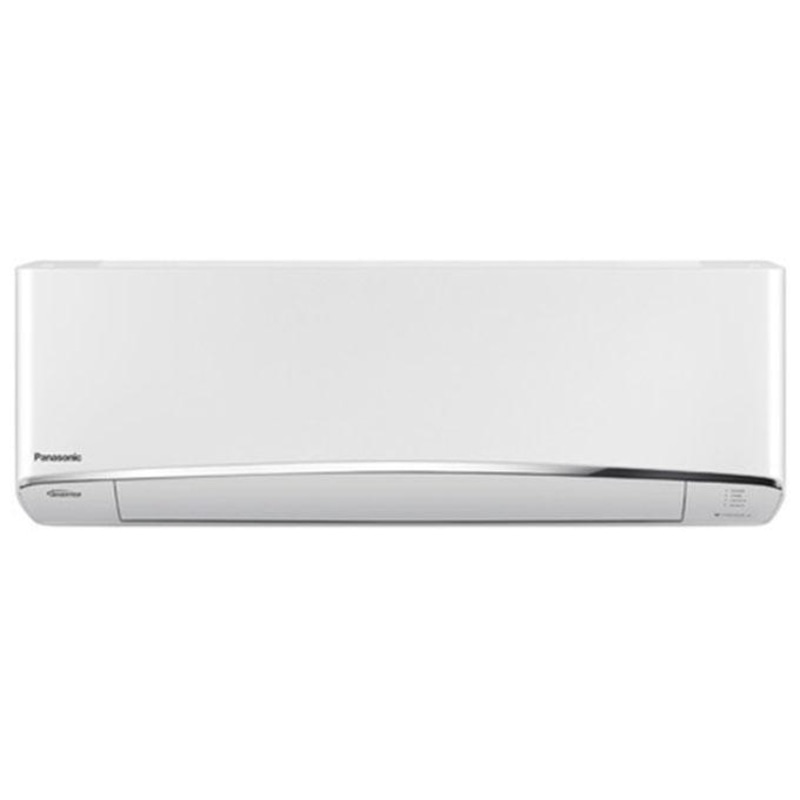

Panasonic 24000BTU Split Type Inverter Air Conditioner CS-S24TKH
- 10 Years on the Compressor
- 1 Year on all other parts
- 3 Free Services
Additional Information
Product Description
Specifications
| Model | Indoor (50Hz) | CS-S24TKH |
|---|---|---|
| Outdoor (50Hz) | CU-S24TKH | |
| Refrigerant Type | R410A | |
| Cooling Capacity | (min-max) kW | 6.25 (1.12-7.10) |
| (min-max)Btu/h | 21,300 (3,820-24,200) | |
| EER | (min-max) Btu/hW | 11.83 (11.58-11.00) |
| Electrical Data | Voltage (V) | 230 |
| Running Current (A) | 7.9 | |
| Power Input (W) | 1,800 (330-2,200) | |
| Moisture Removal | L/h | 3.5 |
| Pt/h | 7.4 | |
| Air Circulation | Indoor m3/min (ft3/min) | 20.2 (715) |
| Outdoor m3/min (ft3/min) | 46.3 (1,635) | |
| Noise Level | Indoor (H/L/Q-Lo) (dB-A) | 45/34/31 |
| Outdoor (H / L) (dB-A) | 52 | |
| Dimensions | Height (mm) | 302 (695) |
| Height (inch) | 11-29/32 (27-3/8) | |
| Width (mm) | 1,120 (875) | |
| Width (inch) | 44-1/8 (34-15/32) | |
| Depth (mm) | 241 (320) | |
| Depth (inch) | 9-1/2 (12-5/8) | |
| Net Weight | kg | 12 (26) |
| lb | 38 (84) | |
| Refrigerant Pipe Diameter | Liquid Side (mm) | ø 6.35 |
| Liquid Side (inch) | 1/4 | |
| Gas Side (mm) | ø 15.88 | |
| Gas Side (inch) | 5/8 | |
| Pipe Extension | Chargeless Pipe Length (m) | 10 |
| Maximum Pipe Length (m) | 20 | |
| Maximum Elevation Length (m) | 15 | |
| Additional Refrigerant Gas* (g/m) | 20 | |
| Power Supply | Indoor | |
| Cleaner Air | nanoe-G | Yes |
| Odour-Removing Function | Yes | |
| Removable, Washable Panel | Yes | |
| Comfort | iAUTO-X | Yes |
| iAUTO | No | |
| ECONAVI | Yes | |
| Temperature Wave | Yes | |
| AUTO COMFORT | Yes | |
| Inverter Control | Yes | |
| Quiet Mode | Yes | |
| Soft Dry Operation Mode | Yes | |
| Personal Airflow Creation | Yes | |
| Airflow Direction Control (Up-Down) | No | |
| Manual Horizontal Airflow Direction Control | No | |
| Manual Airflow Direction Control (Left-Right) | No | |
| Convenience | 24-Hour Dual ON OFF Real Setting Timer | Yes |
| 24-Hour ON OFF Real Setting Timer | No | |
| LCD Wireless Remote Control | Yes | |
| Wired Remote Control | No | |
| Reliability | Random Auto Restart (32 Restart Patterns) | Yes |
| Blue Fin Condenser | Yes | |
| Long Piping (Numbers indicate the maximum pipe length) | 20m | |
| Top-Panel Maintenance Access | Yes | |
| Self-Diagnostic Function | Yes | |
